Ordering Information:

Filter

Adult arterial filter with connections 3/8 inlet & outlet.
Arterial filter with connections 3/8 inlet & outlet with a bypass loop.
Adult arterial filter with connections 3/8 inlet & outlet with bypass loop & purge line.
Pediatric arterial filter with connections 3/8 inlet & outlet.

Pediatric arterial filter with connections 3/8 inlet & outlet with a  bypass loop.

Pediatric arterial filter with connections 3/8 inlet & outlet with  bypass loop & purge line.
Infant arterial filter with connections 1/4 inlet & outlet.
Infant arterial filter with connections 1/4 inlet & outlet with a bypass loop.
Infant arterial filter with connections 1/4 inlet & outlet with bypass loop & purge line.

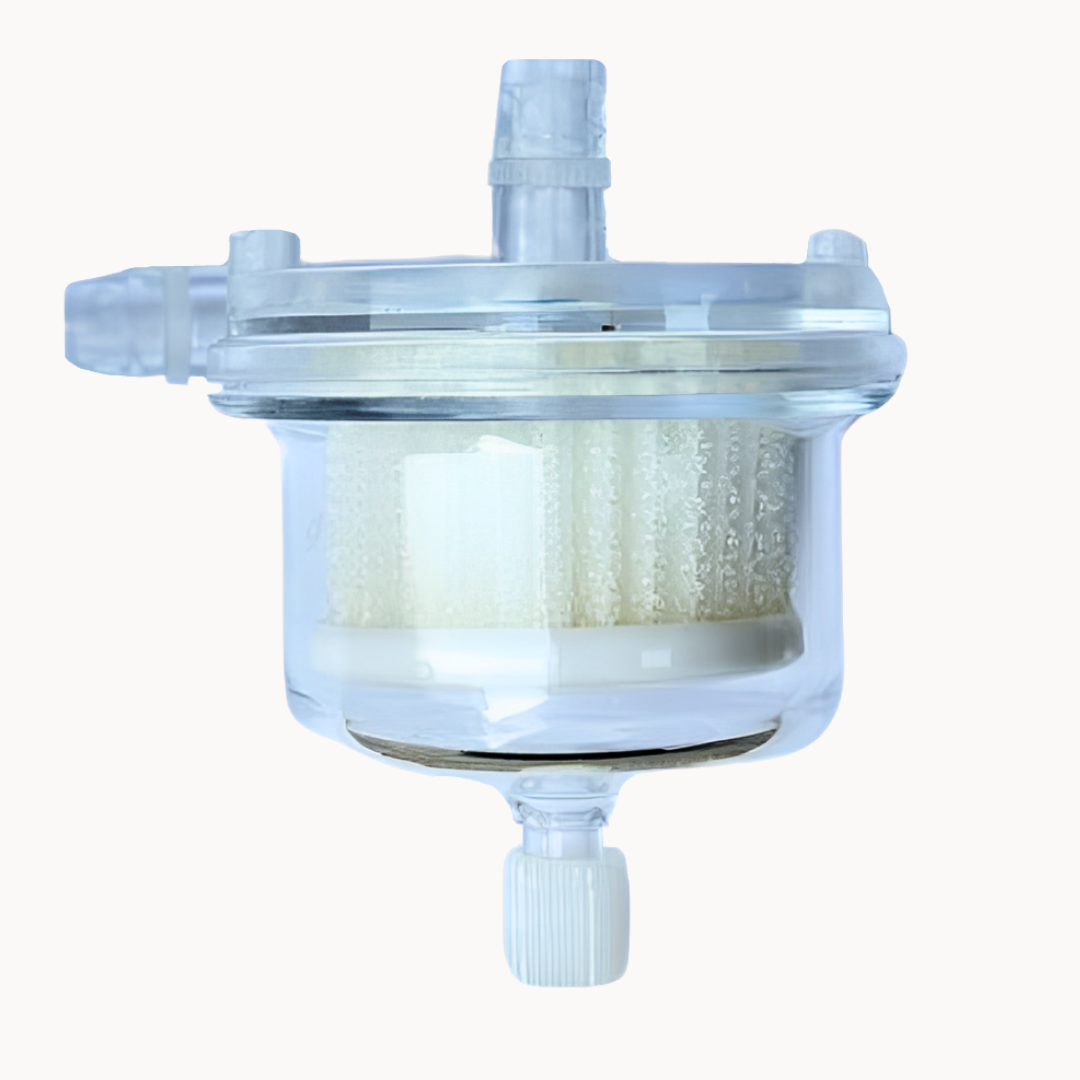

Specification: Adult Filter

• 40 µm Polyester screen filter.
• Max. blood flow 8L/min.
• Priming volume of 179 ml.
• Excellent air handling.
• Excellent visibility & easy priming.

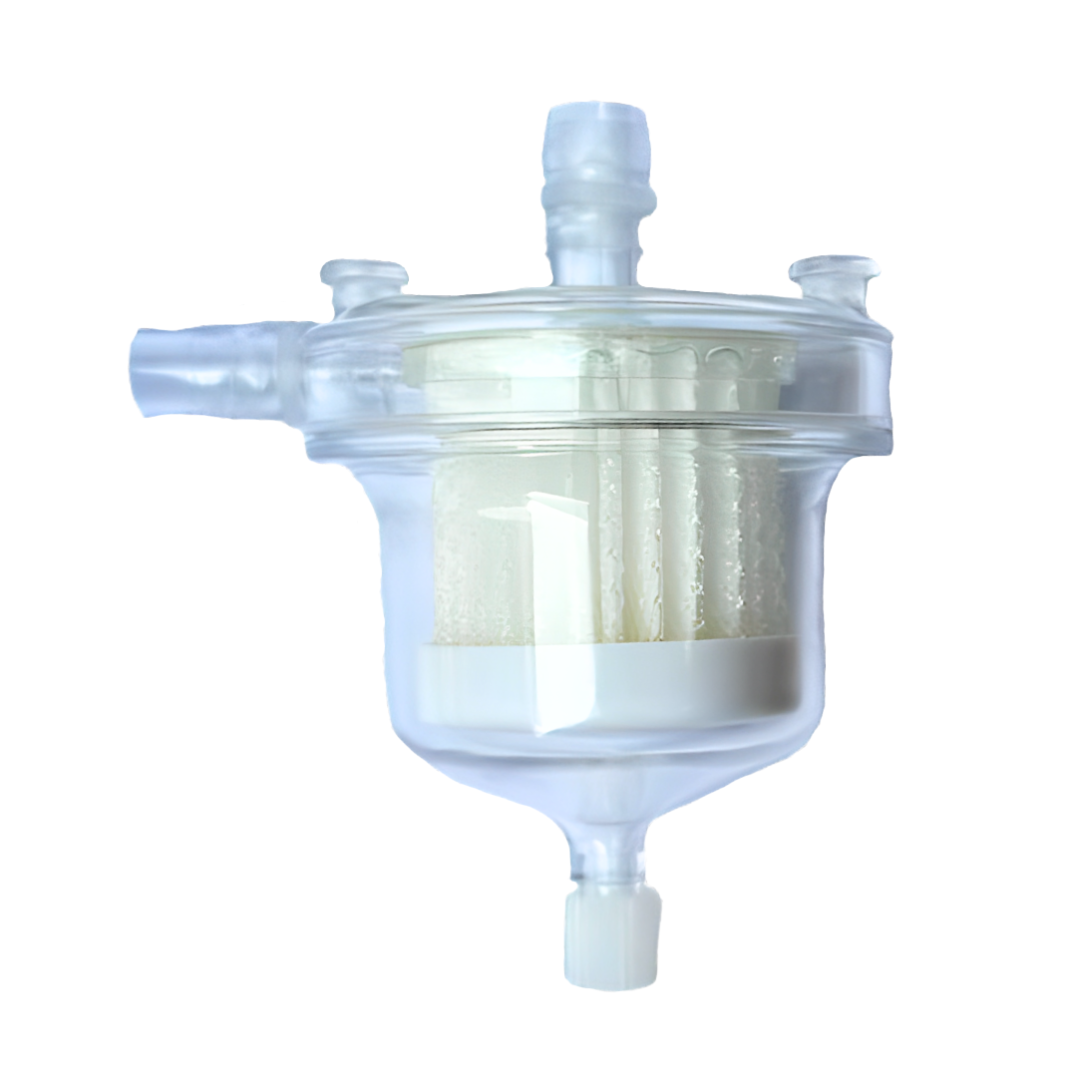

Specification: Pead. Filter

• 40 µm Polyester screen filter.
• Max. blood flow 5L/min.
• Priming volume of 90 ml.
• Excellent air handling
• Excellent visibility & easy priming.

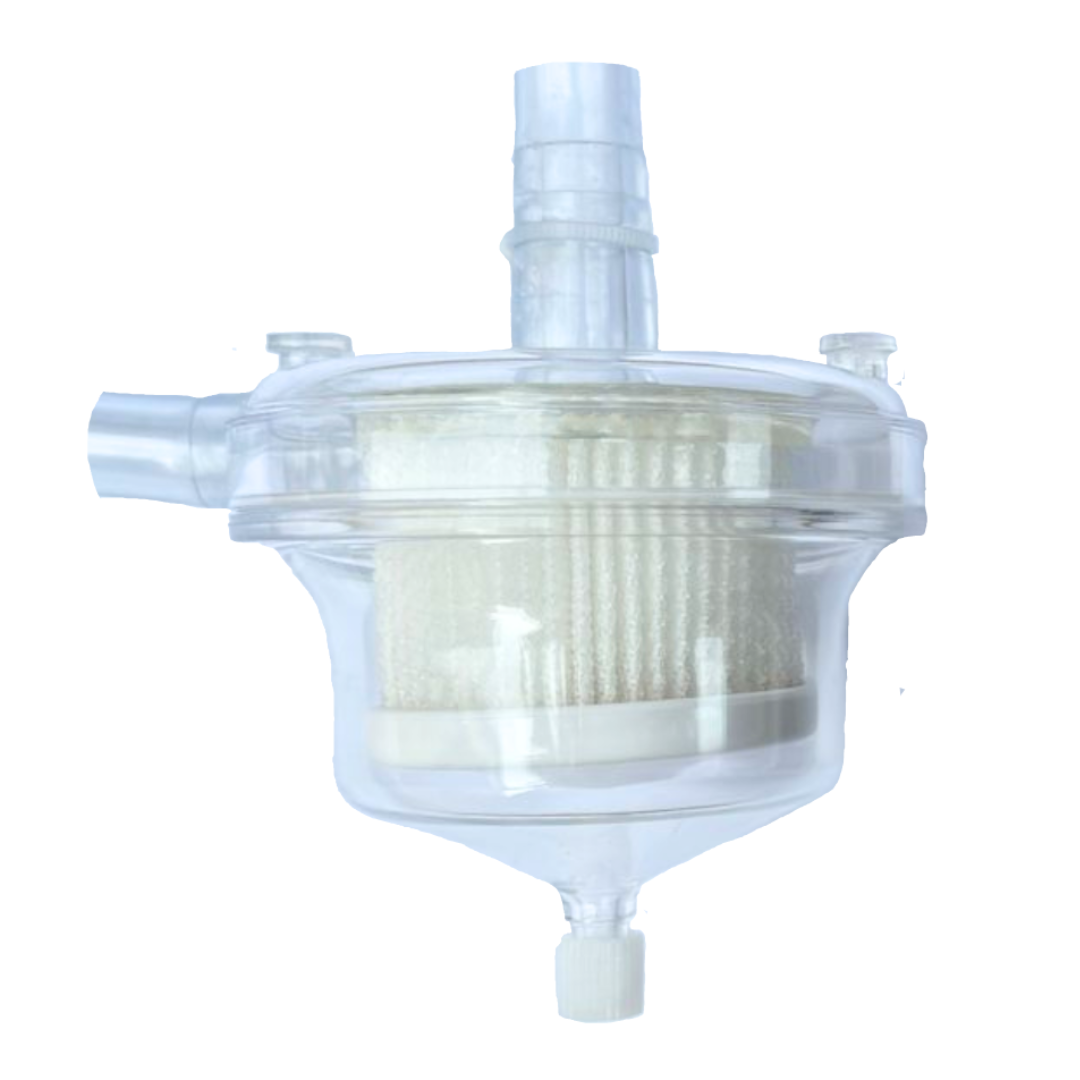

Specification: Infant Filter

• 40 µm Polyester screen filter
• Max. blood flow 3.2L/min.
• Priming volume of 35 ml.
• Excellent air handling.
• Excellent visibility & easy priming.
